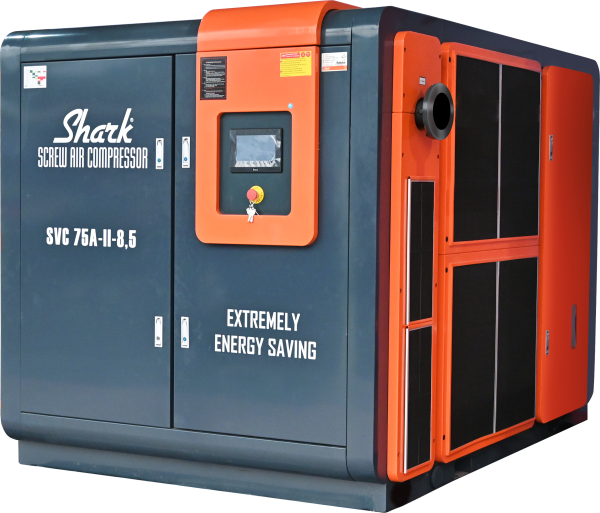

Screw Double Stage

Screw Double Stage

Dapatkan penawaran

Tersedia di:

Deskripsi Produk

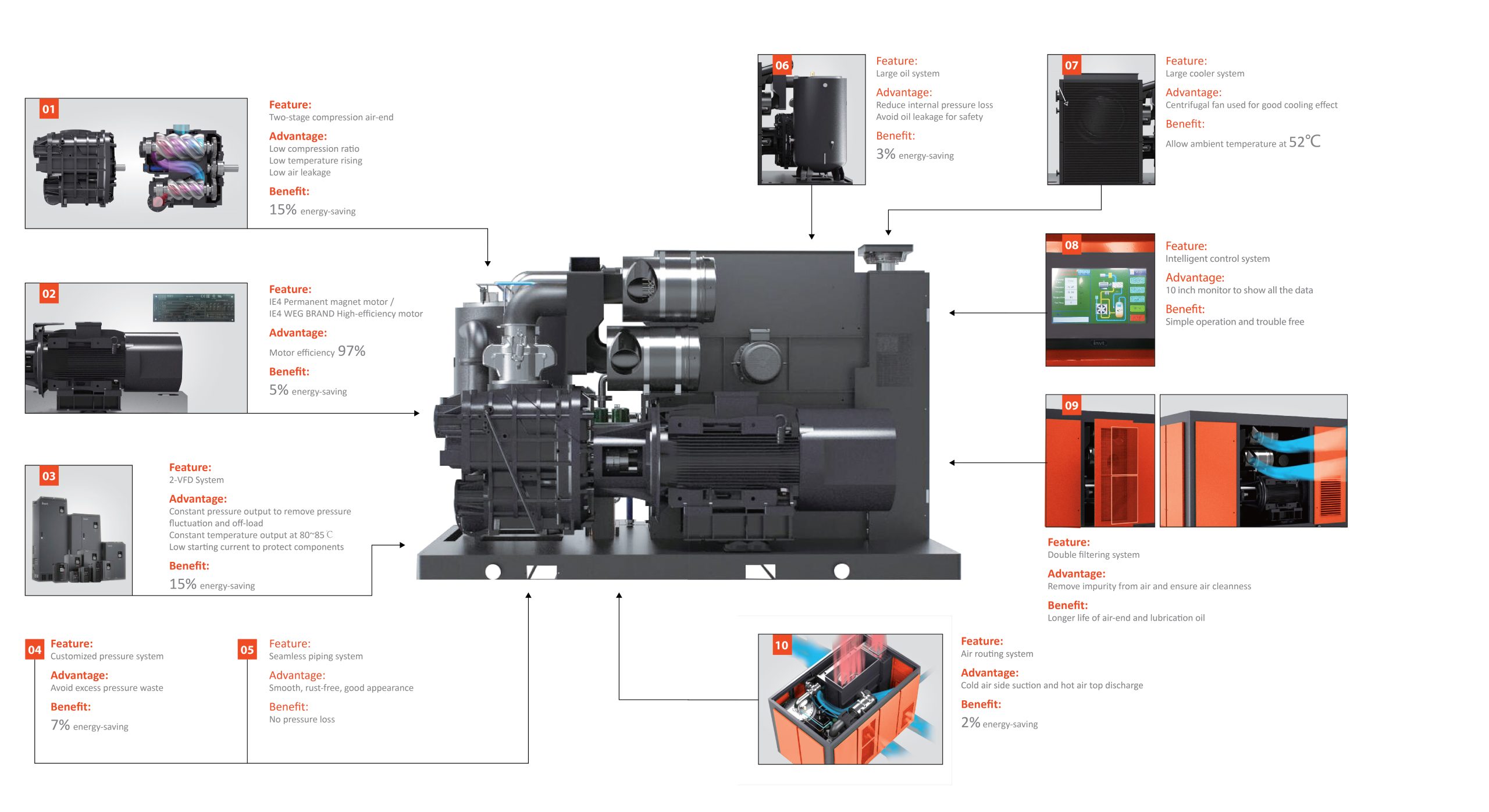

Fitur Produk

Spesifikasi

Model Maximum working pressure Capacity (FAD) Motor power Mode of driving Noise   level Outlet pipe dia. Dimensions (mm) Weight
bar psig m3/min cfm kw hp db inch L W H kg
SVC-15A II 4,5 65 1.0~3.9 35.3~137.7 15 20 Direct driving 65 1 1/2 1500 900 1270 1200
5,5 80 0.9~3.5 31.8~123.6
6,5 94 0.8~3.2 28.2~113.0
7,5 109 0.7~3.0 24.7~105.9
8,5 123 0.7~2.9 24.7~102.4
10,5 152 0.6~2.4 21.2~84.7
12,5 181 0.5~2.0 17.7~70.6
SVC-18A II 4,5 65 1.2~4.8 42.4~169.4 18,5 25 Direct driving 65 1 1/2 1500 900 1270 1250
5,5 80 1.1~4.3 38.8~151.8
6,5 94 1.0~4.0 35.3~141.2
7,5 109 0.9~3.8 31.8~134.1
8,5 123 0.8~3.4 28.2~120.0
10,5 152 0.7~2.9 24.7~102.4
12,5 181 0.7~2.7 24.7~95.3
SVC-22A II 4,5 65 1.6~6.4 56.5~225.9 22 30 Direct driving 65 2 1650 1050 1370 1480
5,5 80 1.5~6.1 53.0~215.3
6,5 94 1.2~4.8 42.4~169.4 1 1/2 1500 900 1270 1350
7,5 109 1.1~4.5 38.8~158.9
8,5 123 1.1~4.3 38.8~151.8
10,5 152 0.8~3.4 28.2~120.0
12,5 181 0.7~2.9 24.7~102.4
SVC-30A II 4,5 65 2.1~8.6 74.1~303.6 30 40 Direct driving 68 2 1650 1050 1370 1550
5,5 80 1.9~7.7 67.1~271.8
6,5 94 1.8~7.0 63.5~247.1
7,5 109 1.6~6.8 56.5~240.0
8,5 123 1.5~6.2 53.0~218.9
10,5 152 1.2~4.7 42.4~165.9 1 1/2 1500 900 1270 1450
12,5 181 1.1~4.3 38.8~151.8
SVC-37A II 4,5 65 2.6~10.3 91.8~363.6 37 50 Direct driving 68 2 1800 1150 1390 1750
5,5 80 2.4~9.5 84.7~335.4
6,5 94 2.2~8.7 77.7~307.1 1650 1050 1370 1600
7,5 109 1.9~7.5 67.1~264.8
8,5 123 1.8~7.4 63.5~261.2
10,5 152 1.5~6.0 53.0~211.8
12,5 181 1.4~5.6 49.4~197.7
SVC-45A II 4,5 65 3.3~13.1 116.5~462.4 45 60 Direct driving 68 DN65 2100 1300 1680 2000
5,5 80 2.9~11.5 102.4~406.0 2 1800 1150 1390 1800
6,5 94 2.4~10.5 84.7~370.7
7,5 109 2.3~10.0 81.2~353.0
8,5 123 2.2~8.6 77.7~303.6 1650 1050 1370 1650
10,5 152 1.9~7.5 67.1~264.8
12,5 181 1.6~6.4 56.5~225.9
SVC-55A/W II 4,5 65 3.9~15.5 137.7~547.2 55 75 Direct driving 70 DN65 2100 1300 1680 2300
5,5 80 3.4~14.5 120.0~511.9
6,5 94 3.2~13.3 113.0~469.5
7,5 109 3.0~13.1 105.9~462.4
8,5 123 2.8~12.3 98.8~434.2
10,5 152 2.3~10.1 81.2~356.5 2 1800 1150 1390 1900
12,5 181 1.9~8.0 67.1~282.4
SVC-75A/W II 4,5 65 4.2~20.7 148.3~730.7 75 100 Direct driving 70 DN80 2740 1740 1820 2800
5,5 80 4.8~19.0 169.4~670.7
6,5 94 4.5~17.0 158.9~600.1 DN65 2100 1300 1680 2400
7,5 109 4.2~16.6 148.3~586.0
8,5 123 3.8~15.5 134.1~547.2
10,5 152 3.4~13.6 120.0~480.1
12,5 181 2.9~11.5 102.4~406.0 2 1800 1150 1390 1900
SVC-90A/W II 4,5 65 6.4~25.6 225.9~903.7 90 120 Direct driving 73 DN100 2850 1850 1950 3800
5,5 80 5.9~23.6 208.3~833.1 DN80 2740 1740 1820 3000
6,5 94 5.6~20.8 197.7~734.3
7,5 109 5.3~20.6 187.1~727.2
8,5 123 4.9~20.0 173.0~706.0
10,5 152 4.1~16.3 144.7~575.4 DN65 2100 1300 1680 2400
12,5 181 3.9~15.3 137.7~540.1
SVC-110A/W II 4,5 65 7.7~30.0 271.8~1059.0 110 150 Direct driving 73 DN100 2850 1850 1950 4000
5,5 80 7.2~28.2 254.2~995.5
6,5 94 6.7~26.0 236.5~917.8
7,5 109 6.1~24.5 215.3~864.9 DN80 2740 1740 1820 3200
8,5 123 5.8~23.0 204.7~811.9
10,5 152 5.1~20.1 180.0~709.5
12,5 181 4.4~17.3 155.3~610.7
SVC-120A/W II 4,5 65 8.8~35.0 310.6~1235.5 120 160 Direct driving 73 DN125 2970 1920 2060 4800
5,5 80 7.9~30.0 278.9~1059.0 DN100 2850 1850 1950 4300
6,5 94 7.2~28.2 254.2~995.5
7,5 109 6.5~26.0 229.5~917.8
8,5 123 6.1~24.8 215.3~875.4
10,5 152 5.6~22.9 197.7~808.4 DN80 2740 1740 1820 3400
12,5 181 4.7~19.2 165.9~677.8
SVC-132A/W II 4,5 65 9.6~38.3 338.9~1352.0 132 175 Direct driving 73 DN125 2970 1920 2060 5000
5,5 80 8.8~35.0 310.6~1235.5
6,5 94 7.8~33.0 275.3~1164.9
7,5 109 7.2~30.0 254.2~1059.0 DN100 2850 1850 1950 4500
8,5 123 6.9~28.0 243.6~988.4
10,5 152 6.1~24.1 215.3~850.7 DN80 2740 1740 1820 4000
12,5 181 5.4~21.3 190.6~751.9
SVC-150A/W II 4,5 65 10.5~42.0 370.7~1482.6 150 200 Direct driving 78 DN125 3300 2050 2150 5300
5,5 80 9.6~38.3 338.9~1352.0
6,5 94 8.8~35.0 310.6~1235.5
7,5 109 8.1~33.0 285.9~1164.9
8,5 123 7.4~30.0 261.2~1059.0 DN100 2850 1850 1950 4800
10,5 152 6.5~28.0 229.5~988.4
12,5 181 6.1~24.3 215.3~857.8
SVC-160A/W II 4,5 65 11.0~44.0 388.3~1553.2 160 215 Direct driving 78 DN125 3300 2050 2150 5800
5,5 80 10.5~42.0 370.7~1482.6
6,5 94 9.6~38.3 338.9~1352.0
7,5 109 8.8~35.0 310.6~1235.5
8,5 123 8.1~33.0 285.9~1164.9
10,5 152 7.7~30.0 271.8~1059.0 DN100 2850 1850 1950 5000
12,5 181 6.5~26.3 229.5~928.4
SVC-185A/W II 4,5 65 12.5~50.0 441.3~1765.0 185 250 Direct driving 78 DN150 3650 2250 2300 7000
5,5 80 11.5~46.0 406.0~1623.8
6,5 94 11.0~44.0 388.3~1553.2 DN125 3300 2050 2150 6000
7,5 109 10.7~42.0 377.7~1482.6
8,5 123 10.3~40.0 363.6~1412.0
10,5 152 8.8~35.5 310.6~1253.2
12,5 181 7.5~32.4 264.8~1143.7
